SPECIFICATION
PRODUCT Size 65”*28.2”*3.2” (1650*715*80mm)
LED Number’s height 24”+12”
LED Lamps QTY 2450
Housing color Black
LED color Red

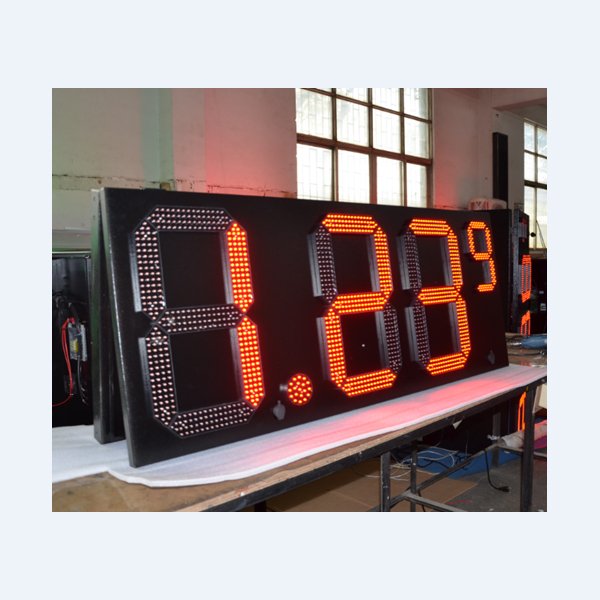

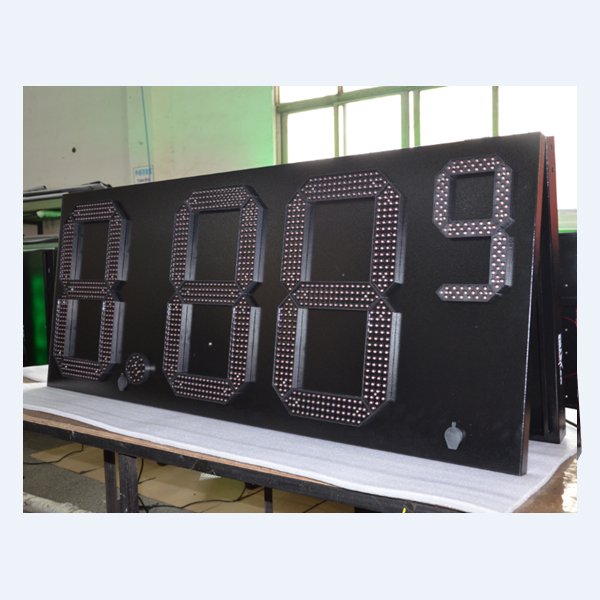

Product name WSL-GS-R-24″-1 LED GAS SIGN
LED MODULE LED Chips brand Epistar Star
LED Chips size 10*20
LED type DIP546
LED Number’s size 24”:340*610mm; 12”:170*310mm
LED Lamps QTY/Number 24”: 756; 12”: 182
OPTICAL Display Dimming Over 8 levels of automatic intensity adjustment
Display Color White
Brightness 4000-5000mcd
Best viewing distance 10-150m
Best viewing angle 60 degree
CONTROL Drive mode Static scan
Drive card 2P connecting port
Control system RF LCD Remote control
Display format Numbers
Control card NUM-GAS
POWER Frame rate >60hz
Refresh rate >180hz
Current 20MA
Working temperature storage:-40~+75℃
Woking Voltage(AC) 100-230V
Supply Voltage(DC) 12V
Power(W) 117W
Power Supply Meanwell with UL certification
MTBF(Mean Time Between Failure) >5000 hours
Display lifespan >100000 hours
OTHERS Frame(Cabinet) Front open iron cabinet
Waterproof rate Waterproof, IP65
Using environment Semi-outdoor / Outdoor
Operating temperature -40℃ TO 45℃
Operating humidity 10% TO 90% RH
Storage temperature -40℃ TO 80℃
Storage humidity 10% TO 95% RH
Warranty time 3 Years
